Multiband Antennas, Frequenzy Ranges 67MHz - 87MHz (4m Band) and 143MHz - 174MHz (2m Band)

Multi Band Antennas support several frequency bands and are commonly usd in combination with dividers / splitters if different radio equipment shall be connected.

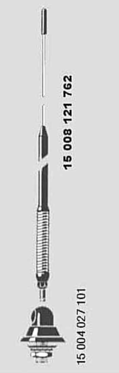

The KFA 240 R and BOS 240 L are standard products. Other frequency band combinations are possible on request.

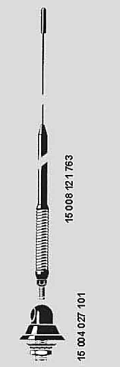

KFA 240 R 15 187 220 375

Frequency bands: 4m (74 - 88MHz), 2m (167 - 174MHz), FM radio (87 - 108MHz)

Aerial rod: Stainless steel with spring

Length after tuning: approx. 930 mm

Gain: 0dB (referred to λ/4 rod, mid of roof)

VSWR 2m band: < 3:1 (Δf 10MHz)

VSWR 4m band: <3,5:1

Maximum power: 50W

Impedance: 50Ω

Cable: Option

Using a multi-band aerial like KFA240 or similar, a 2m and 4m two-way-radio and a car-radio may be connected using a diplexer. A recommended diplexer type is AW 240.
