Frequency Range 67MHz - 88MHz (4m band)
Remark: Rod antennas can be adapted to frequencies up up to 450MHz by shortening the rod.

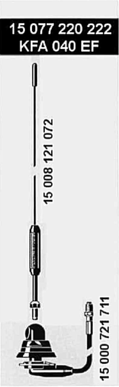

KFA 040 EF 15 077 220 222
Aerial rod: Stainless steel
Length after tuning: 1200mm (equal to λ/4)
Gain: 0dB (referred to λ/4 rod, mid of roof)
VSWR: < 2:1 (Δf 10MHz)
Maximum power: 50W
Impedanz: 50Ω
Cable: 500cm, RG 58 C/U

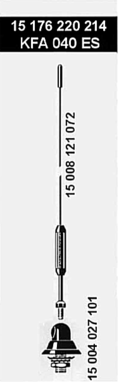

KFA 040 ES 15 176 220 214
Aerial rod: Stainless steel, black
Length after tuning: 1200mm (equal to λ/4)
Gain: 0dB (referred to λ/4 rod, mid of rod)
VSWR: < 2:1 (Δf 10MHz)
Maximum power: 50W
Impedance: 50Ω

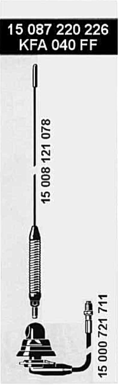

KFA 040 FF 15 087 220 226
Aerial rod: Stainless steel with spring
Length after tuning: 1150mm (equal to λ/4)
Gain: 0dB (referred to λ/4 Stab, mid of roof)
VSWR: < 2:1 (Δf 10MHz)
Maximum power: 50W
Impedance: 50Ω
Cable: 500cm, RG 58 C/U

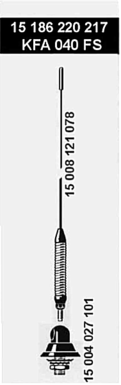

KFA 040 FS 15 186 220 217
Aerial rod: Stainless steel, black, with spring
Length after tuning: 1150mm (equal to λ/4)
Gain: 0dB (referred to λ/4 rod, mid of roof)
VSWR: < 2:1 (Δf 10MHz)
Maximum power: 50W
Impedance: 50Ω

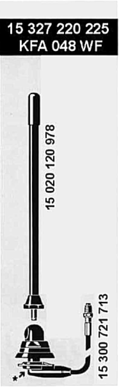

KFA 048 WF 15 327 220 225
Aerial: Helixl
Length after tuning: 400mm
Tuning: Shorten the helix
Gain: 2dB (referred to λ/4 rod, mid of roof)
VSWR: < 2:1 (Δf 10MHz)
Maximum power: 15W
Impedance: 50Ω
Cable: 500cm, RG 58 C/U
Special features: Special aerial mount
