Frequency Range 400MHz - 450MHz (70cm Band)
KFA 420 ES / EF Series for 400MHz - 440MHz with stainless steel aerial rod (525mm) for straight or angled cable connection. Tuning by sliding of the disc along the aerial rod.
KFA 450 ES / EF Series for 430MHz - 470MHz with stainless steel aerial rod (485mm) for straight or angled cable connection. Tuning by sliding of the disc along th aerial rod.

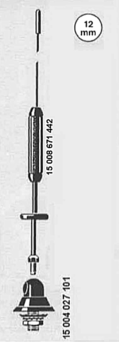

KFA 420 ES 15 176 220 442
Aerial rod: Stainless steel
Length after tuning: 525 mm (equal to λ/4 + λ/2 )
Gain: 4dB (referred to λ/4 rod, mid of roof)
VSWR: < 1,5:1 (Δf 10MHz)
Maximum power: 50W
Impedance: 50Ω
Cable: Option

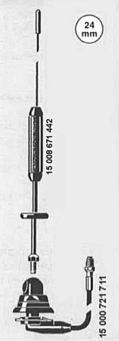

KFA 420 EF 15 077 220 442
Aerial rod: Stainless steel
Length after tuning: 525 mm (equal to λ/4 + λ/2 )
Gain: 4dB (referred to λ/4 rod, mid of roof)
VSWR: < 1,5:1 (Δf 10MHz)
Maximum power: 50W
Impedance: 50Ω
Cable: 500cm, RG 58 C/U

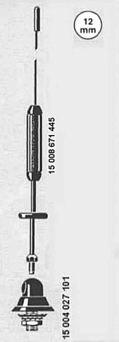

KFA 450 ES 15 176 220 445
Aerial rod: Stainless steel
Length after tuning: 485 mm (equal to λ/4 + λ/2 )
Gain: 3dB (referred to λ/4 rod, mid of roof)
VSWR: < 1,5:1 (Δf 10MHz)
Maximum power: 50W
Impedance: 50Ω
Cable: Option
KFA 450 ES 15 176 220 445
Aerial rod: Stainless steel
Length after tuning: 485 mm (equal to λ/4 + λ/2 )
Gain: 3dB (referred to λ/4 rod, mid of roof)
VSWR: < 1,5:1 (Δf 10MHz)
Maximum power: 50W
Impedance: 50Ω
Cable: Option
