Frequency Range 380MHz - 400MHz (70cm Band)
KFA 390 GS / GF Series with stainless steel aerial rod (535mm) for straight or angled cable connection. Tuning by shifting of the disc along the aerial rod.
KFA 390 OS / OF Series with stainless steel aerial rod (250mm) for straight or angled cable connection. Tuning by shortening the rod length.
KFA 380 OG (On-Glass) with Bronze aerial rod (530mm)
Some of the 2m and 4m Band aerials can be used for the 70cm band after shortening the aerial rod.

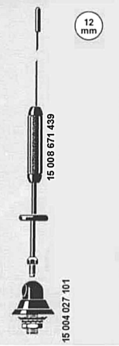

KFA 390 GS 15 176 220 439
Aerial rod: Stainless steel
Length after tuning: 535 mm (equal to λ/4 + λ/2 )
Gain: 4dB (referred to λ/4 rod, mid of rod)
VSWR: < 1,5:1 (Δf 10MHz)
Maximum power: 50W
Impedance: 50Ω
Cable: Option

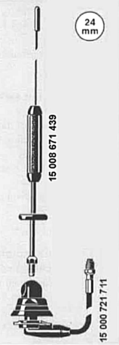

KFA 390 GF 15 077 220 439
Aerial rod: Stainess steel
Lengh after tuning: 535 mm (equal to λ/4 + λ/2 )
Gain: 4dB (referred to λ/4 rod, mid of roof)
VSWR: < 1,5:1 (Δf 10MHz)
Maximum power: 50W
Impedance: 50Ω
Cable: 500cm RG58 C/U

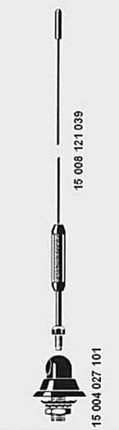

KFA 390 OS 15 176 220 039
Aerial rod: Stainless steel
Length after tuning: 250 mm (equal to λ/4 )
Gain: 0dB (referred to λ/4 rod, mid of roof)
VSWR: < 1,5:1 (Δf 15MHz)
Maximum power: 50W
Impedance: 50Ω
Cable: Option

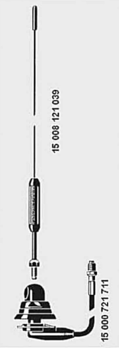

KFA 390 OF 15 077 220 039
Aerial rod: Stainless steel
Length after tuning: 250 mm (equal to λ/4)
Gain: 0dB (referred to λ/4 rod, mid of roof)
VSWR: < 1,5:1 (Δf 10MHz)
Maximum power: 50W
Impedance: 50Ω
Cable: 500cm RG58 C/U
